中空玻璃的需求增大，人們對于中空玻璃的質量要求也越來越高。廠家們也在抓住這個機遇挑戰的同時，生產質量可靠的中空玻璃已經成為中空玻璃生產廠家非常關心的問題。今天本文就針對中空玻璃加工設備的包含種類進行簡要分析。

The demand for insulating glass is increasing, and people's quality requirements for insulating glass are also getting higher and higher. Manufacturers are also seizing this opportunity and challenge, while producing high-quality and reliable insulating glass has become a concern for insulating glass manufacturers. Today, this article will briefly analyze the types of insulated glass processing equipment included.

中空玻璃生產設備：

Hollow glass production equipment:

目前在中空玻璃生產工藝中主要生產設備有：1.砂帶磨邊機 2.玻璃運輸機 3.玻璃清洗烘干機 4.玻璃檢查運輸機 5.鋁框定位機 6.玻璃合片機 7.翻轉運輸機 8.旋轉涂膠機 9.雙組份打膠機 10.中空玻璃專用充氣機 11.成品玻璃輸送車 12.半自動鋁條折彎機 13.自動分子篩灌裝機 14.丁基膠涂膠機 15.半自動鋁框輸送機

At present, the main production equipment in the production process of insulating glass includes: 1. Belt grinding machine 2. Glass conveyor 3. Glass cleaning and drying machine 4. Glass inspection conveyor 5. Aluminum frame positioning machine 6. Glass laminating machine 7. Flipping conveyor 8. Rotary gluing machine 9. Two component gluing machine 10. Hollow glass special inflation machine 11. Finished glass conveyor 12. Semi automatic aluminum bar bending machine 13. Automatic molecular sieve filling machine 14. Butyl rubber coating machine 15. Semi automatic aluminum frame conveyor

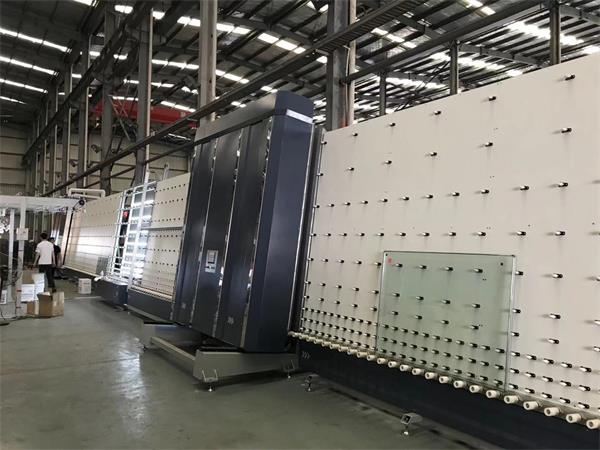

目前中空玻璃生產線主要分為四段：入料段、清洗干燥段、檢查段和合片段。這四個階段又是以相同的方式安放玻璃。結構緊湊，提高效率、讓中空玻璃生產變得更加簡單方便。

At present, the hollow glass production line is mainly divided into four sections: feeding section, cleaning and drying section, inspection section, and assembly section. These four stages place the glass in the same way. Compact structure, improves efficiency, and makes the production of insulated glass simpler and more convenient.

清洗箱：清洗箱整體是不銹鋼材料來鍛造的，更加的堅固與整潔。傳送輥也是由耐酸的堿性橡膠輥制作。中間還設計有機玻璃視窗方便人們可以隨時觀察玻璃的清洗情況。

Cleaning box: The entire cleaning box is forged with stainless steel material, which is more sturdy and tidy. The conveyor roller is also made of acid resistant alkaline rubber rollers. An organic glass window is also designed in the middle for people to easily observe the cleaning status of the glass at any time.

入料段、清洗干燥段：入料段、清洗干燥段采用手動無級調速電機傳動，玻璃平穩地運行。干燥段采用大風力傾斜風刀能使玻璃表面得以干燥。讓整個工序迅速而又干凈利落的進行中。

Feeding section, cleaning and drying section: The feeding section and cleaning and drying section are driven by manual stepless speed regulation motors, ensuring smooth operation of the glass. The use of high wind force inclined blades in the drying section can dry the surface of the glass. Make the entire process proceed quickly and cleanly.

檢查段：檢查段設有燈管，能清晰地檢查玻璃的清洗質量。

Inspection section: The inspection section is equipped with a light tube, which can clearly check the cleaning quality of the glass.

合片段：合片段具有玻璃定位及鋁框定位裝置，能完成玻璃定位、鋁框定位安放功能。玻璃由傳送膠輥承托及傳送，傳送輥由電機（輥壓段電機）經過變頻調速器通過鏈輪帶動，玻璃由清洗干燥段低速進入本段，經檢查合格后加速運行至下一工作段，提高工作效率；由變頻調速器控制本段調速電機的運行速度，光電開關控制玻璃進入下一工作段

Combination fragments: Combination fragments have glass positioning and aluminum frame positioning devices, which can complete the functions of glass positioning and aluminum frame positioning placement. The glass is supported and transported by a conveyor roller, which is driven by a motor (roller pressing section motor) through a frequency converter and a sprocket. The glass enters this section at a low speed from the cleaning and drying section, and after passing the inspection, it accelerates to the next working section to improve work efficiency; The operating speed of the speed regulating motor in this section is controlled by a frequency converter, and the photoelectric switch controls the glass to enter the next working section

中空玻璃生產線的清洗水路系統為循環系統，其水箱配有恒溫水加熱裝置，水溫可自動保持在合理的范圍。

The cleaning water system of the hollow glass production line is a circulating system, and its water tank is equipped with a constant temperature water heating device, which can automatically maintain the water temperature within a reasonable range.

水由水泵從水箱抽出，經噴淋水管噴到玻璃表面上，清洗玻璃后流回水箱，循環使用。若水質較差，需配備水處理裝置（用戶自備），水經處理后進入水箱，按上述步驟循環使用。

Water is pumped out of the water tank by a water pump, sprayed onto the surface of the glass through a sprinkler pipe, cleaned and returned to the water tank for recycling. If the water quality is poor, a water treatment device (provided by the user) is required. After treatment, the water enters the water tank and is recycled according to the above steps.
